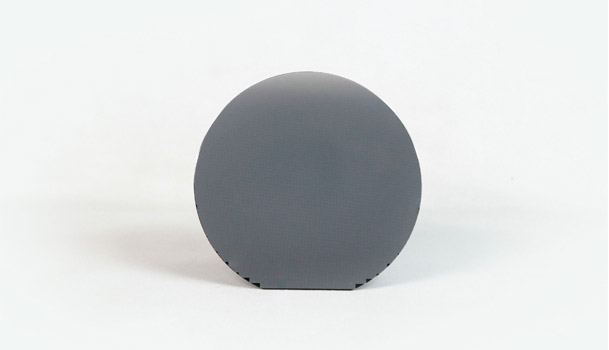

  • sub mount 사진

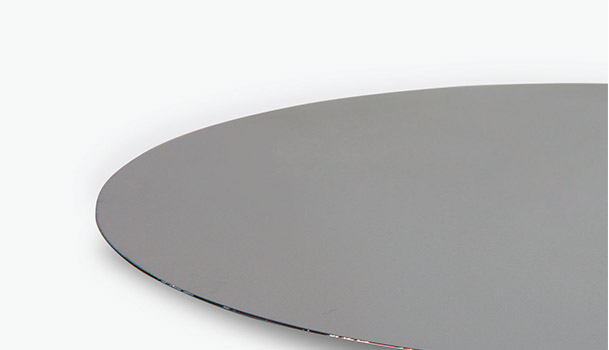

  • sub mount 사진
Overview
Parts functioning heat dissipation of high power semiconductor devices and optics of optical semiconductor devices
Substrate Materials
Si , AlN, SiC, BeO, AIC
Metallization
Ti/Pt/Au/AuSn , Au, Ti/Ni/Au/AuSn
Design
Customize
Application
· Laser Diode Heat sink Package
· High Power LED Heat sink Package
· Power Divice Heat Sink Parts
· Optical Divice Parts & Package

Submount List

PDF
Download
Product No Die SizeW x L [um] Solder SizeW x L [ um ] Die Thickness[ um ] remark
Si Submount
PSS-1051050-04 495 × 485 300 × 455 225 Insulated Type
PSS-1069069 650 × 650 650 × 650 350 Insulated Type
PSS-1154184 1520 × 1820 650 × 1800 220 Insulated Type
PSS-2034029-Pt 320 × 270 300 × 250 220 Condutive Type
PSS-2054064-Pt 520 × 620 500 × 600 220 Condutive Type
PSS-2074039 720 × 370 500 × 330 220 Condutive Type
PSS-2074039N 720 × 370 480 × 310 220 Condutive Type
PSS-2074039R 720 × 370 700 × 350 220 Condutive Type
PSS-2070070 680 × 680 660 × 660 220 Condutive Type
PSS-2071071S 690 × 690 270 × 670 220 Condutive Type
PSS-2071071D 690 × 690 270 × 670 220 Condutive Type
PSS-2084104 820 × 1020 300 × 1000 220 Condutive Type
AlN Submount
PSA-1069044 600 × 350 350 × 330 230 Insulated Type
PSA-1077042 700 × 350 350 × 350 230 Insulated Type
PSA-1079044 700 × 350 480 × 310 220 Insulated Type
PSA-1089069 800 × 600 580 × 560 350 Insulated Type
PSA-1089109 800 × 1000 550 × 970 400 Insulated Type
PSA-1094064 920 × 620 500 × 580 220 Insulated Type
PSA-1097067 900 × 600 500 × 560 220 / 400 Insulated Type
PSA-1090097 825 × 900 425 × 850 230 Insulated Type
PSA-1229239 2200 × 2300 1000 × 2290 400 Insulated Type
PSA-1409409 4000 × 4000 1000 × 3390 400 Insulated Type
